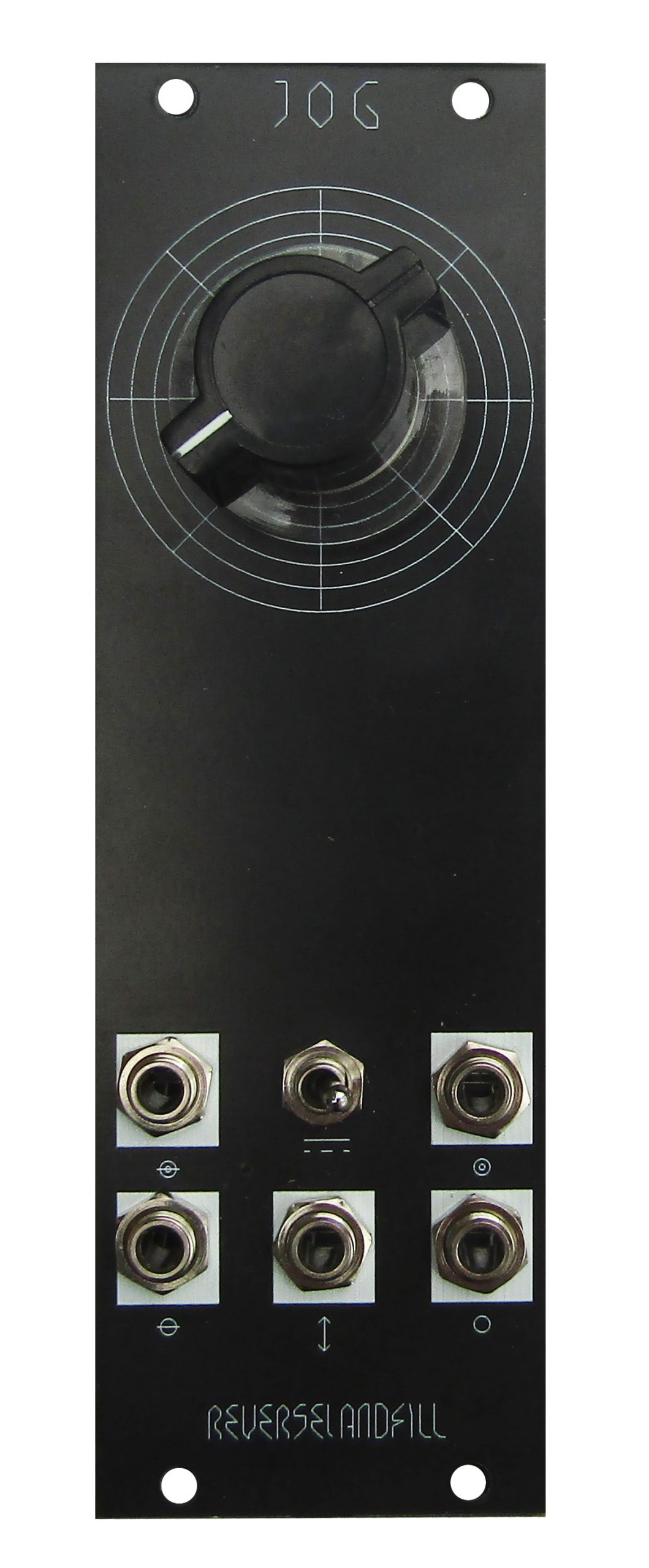

JOG is a (video) voltage source with a multiturn Bourns potmeter for precise adjustments.
Finetune your VCO / modulation source / FM inputs etc.

Features:
10 turn potmeter to adjust the output voltage (VAR jack)
4 static voltages
1 variable voltage, switchable from -1v to +1v → 0v to +1v

The range can be adjusted to +5v -5v for audio CV modulation.

Specifications:
8HP black panel
Skiff friendly
Reverse polarity protection
Depth: 24mm
Current draw: +12v: 5mA, -12v: 2mA, +5v: 0mA
Signals: CV (optimised for 0-1v LZX format video)
